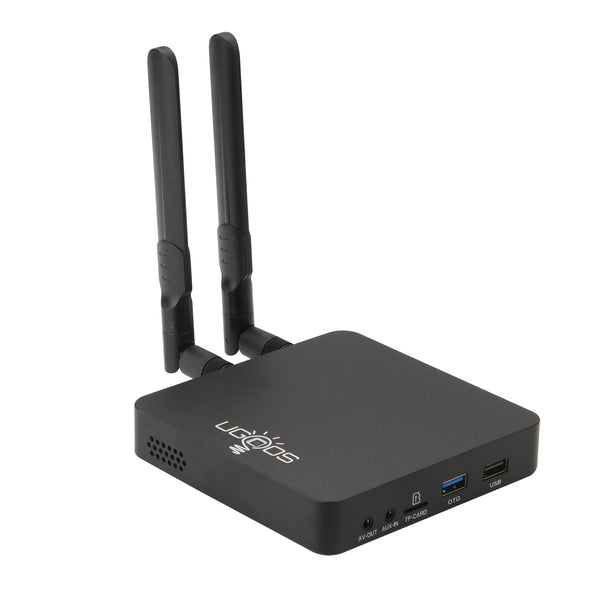

Ugoos AM6B Plus 2021 Amlogic S922XJ Android TV Box
AM6B Plus 2021
AM6B Plus is a brand new remastered version of 2020 successor AM6 Plus with SoC Amlogic S922XJ, WiFi 6 module, and other improvements.
AM6 Plus gets USB 3.0 Fast USB, Bluetooth 5.0, WIFI 5.0/2.4 GHz with MIMO RSDB Technology Support, and the whole bunch of brand unique Ugoos Settings on board.
Device comes with OTA updater, so you no need to update firmware manually.
| Hardware Specs: | |
| Operation System | Android 9.0 |
| Language | English, Chinese …Multi-Language support |
| CPU | Amlogic S922XJ with 12nm，Quad core ARM Cortex-A73 and dual-core ARM Cortex-A53 CPU |
| GPU | ARM Mali TM-G52 MP6(6ppc) |
| SDRAM | LPDDR4 4GB |
| Storage Capacity (Flash) | 32GB （EMMC） |
| WIFI | 2.4G+5G The wireless module complies with IEEE 802.11 a/b/g/n/ac/ax 2×2 MIMO standard. |
| Bluetooth | Bluetooth 5.0 with LE technology |
| The Extended Storage | TF Card, up to 32GB (SD2.X,SD3.X,SD4.X, eMMC ver5.0) |
| Power Supply | DC 12V/2A |
| HDR | Support |
| Interfaces: | |
| HDMI Output | HDMI(2.1 and 2.0 ) to support maximum 4K@60fps output(HDCP2.2) |
| USB Port | 1*USB 3.0 Fast Speed, 3*USB 2.0 Host |
| Optical Output | 1*SPDIF |
| Led Work Light | Support |
| Network | 1*RJ45 1000M (1000M Ethernet Integrated IEEE 802.3 10/100/1000M Ethernet MAC with RGMII interface) |
| Power Supply | 1*DC Jack |
| Media Parameter: | |
| Audio Container | MP3,AAC,WMA,RM,FLAC,OGG |
| Audio Out | Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing I2S audio interface supporting 2-channel input and 8-channel (7.1) output Built-in serial digital audio SPDIF/IEC958 output and PCM input/output Built-in stereo audio DAC, Stereo digital microphone PDM input Support concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM |
| Video CODEC | VP9 Profile-2 up to 4Kx2K@60fps H.265 HEVCMP-10@L5.1 up to 4K*2K@60fps H.264 AVC HP@L5.1 up to4K*2K@60fps H264 MVC up to1080P@60fps MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) WMV/VC-1 5P/MP/AP up to 1080P@60fps AVS-P16(AVS+)/AVS-P2 jiZhun Profile up to 1080P@60fps MPEG-2 MP/HL up to 1080P@60fps(ISO-13818) MPEG-1 MP/HL up to 1080P@60fps(ISO-11172) Realvideo 8/9/10 up to 1080P WebM up to VGA Multiple language and multiple format sub-title video support MJPEG and JPEG unlimited pixe resolution decoding(ISO/IEC-10918) Supports JPEG thumbnail, scaling, rotation and transition effects Support *.mkv,*.wmv,*.mpg,*.mpeg,*.dat,*.avi,*.mov,*.iso,*.mp4,*.rm and *.jpg file formats |
| Software Extension | Support Google Play & APK install |
| DLNA, Miracast Protocol | Support DLNA, Miracast Protocol |
| Remote Control | Remote controller |
| IM Software | Support Skype/QQ/MSN/GTALK (Depends on APK ） |
| Office Software | WORD/EXCEL/PDF(Depends on APK install) |
| Other Parameters: | |
| Operation Temperature | 0~60℃ |
| Storage Temperature | -10~60℃ |
| Humidity Environment | 5%-90%(No condensation） |
| Certificate | CE, FCC |
| Package: | |
| Dimensions | 117*117*18.5mm |
| Net Weight | 300g |
| Gift Box Size | 162*162*80mm |
